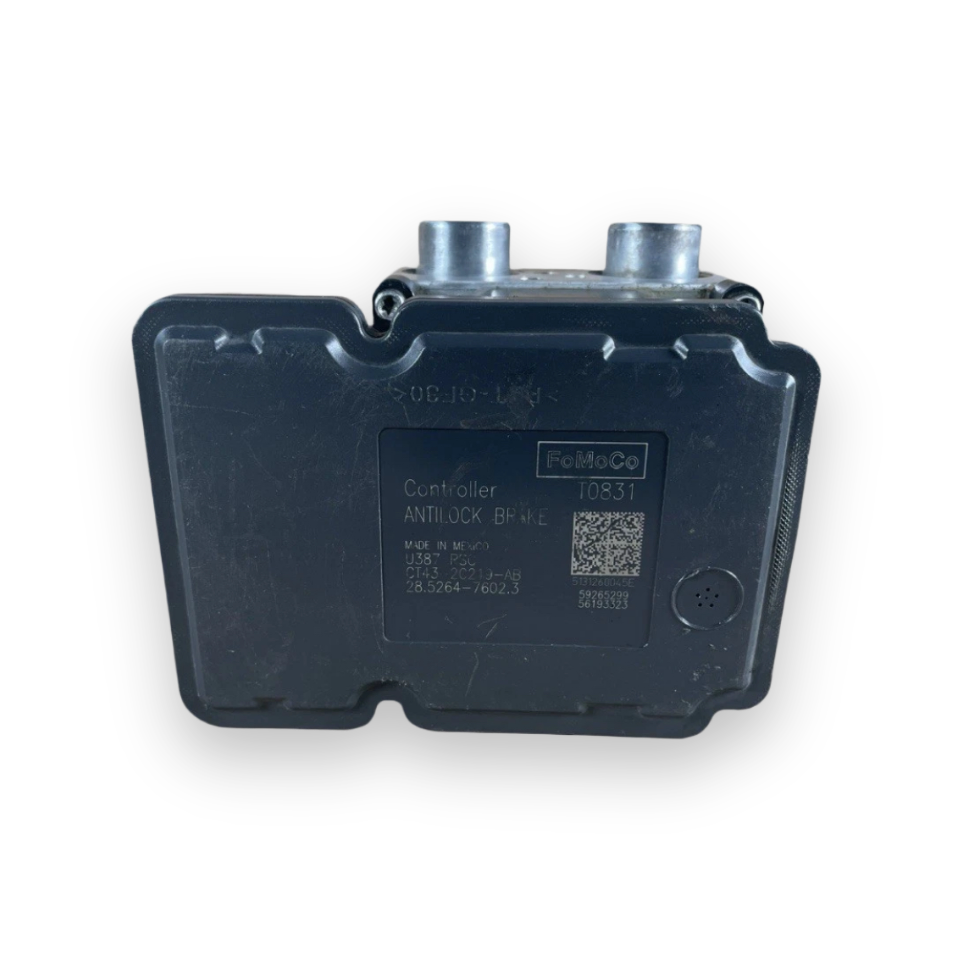

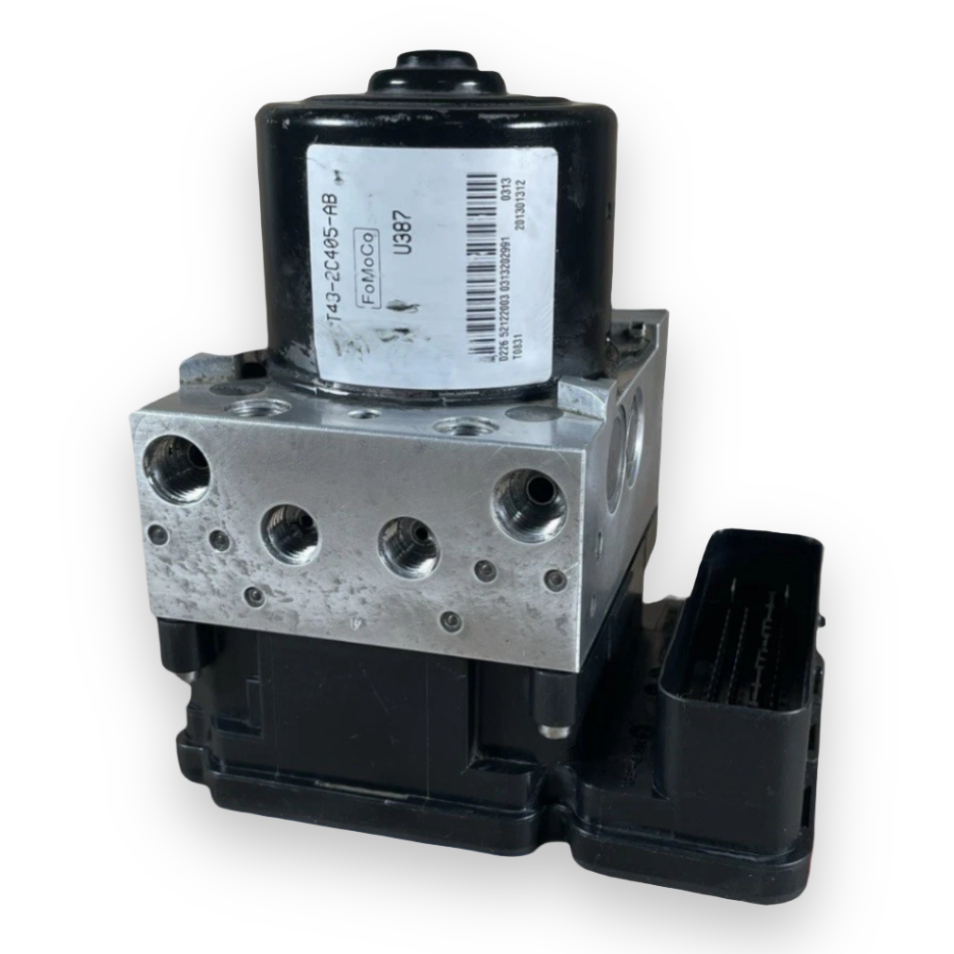

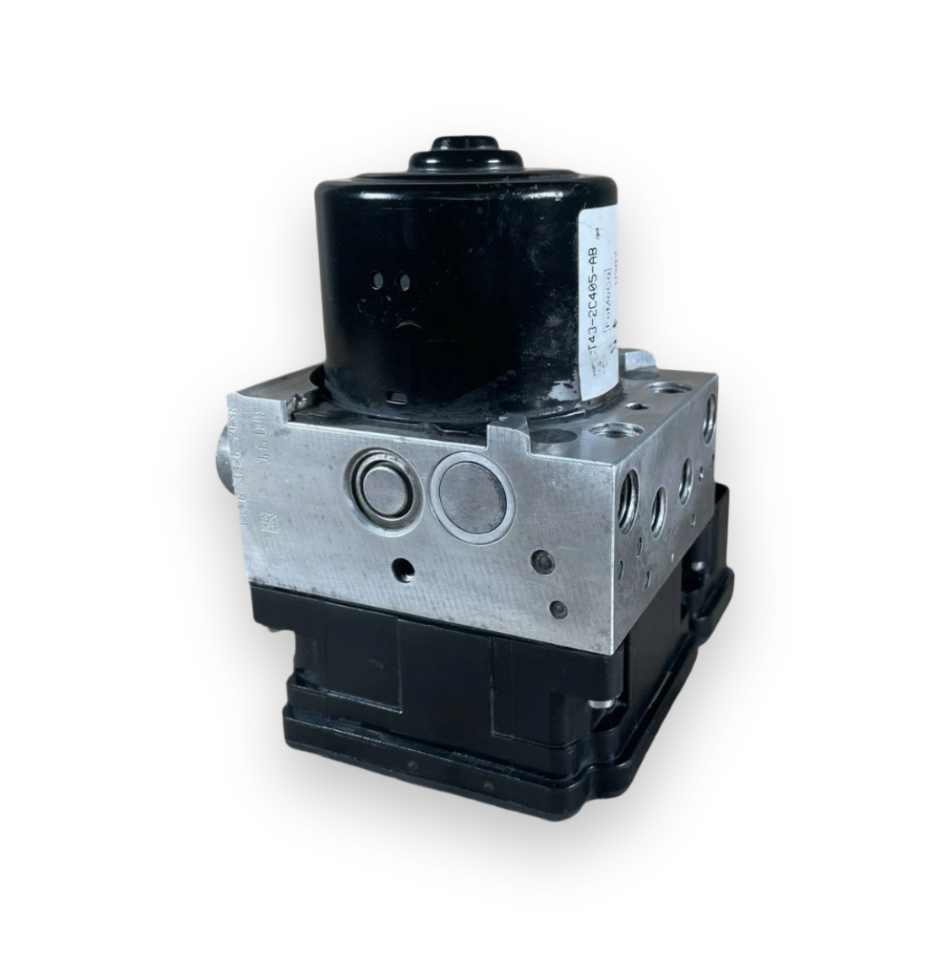

11–14 Ford Edge MKX ABS Pump & Module | OEM CT43-2C405-AB

11–14 Ford Edge MKX ABS Pump & Module | OEM CT43-2C405-AB

Regular price $349.99 USD
Regular price $399.99 USD Sale price $349.99 USD
Sale Sold out

OEM ABS Pump and Control Module for Ford Edge (2011-2014) . Each unit is rigorously hydraulically bench-tested using a proprietary, full-pressure test rig that simulates real-world brake function—including valve actuation, pump pressure, and fluid integrity. This is not a “plug-only” test — it’s pressure-verified and functionally proven before sale.


Our Bench Testing Process:

1. Electrical Initialization

– The ABS module is powered up in vehicle.

– Communication is established via Techstream to monitor live module data and verify ID.

2. Fluid Path Simulation

– DOT 3 brake fluid is injected into the module’s inlet lines, replicating hydraulic input during braking.

– Outlet ports are connected to catch tubes to evaluate valve response and fluid transfer rate under load.

3. Valve Function Verification

– Each solenoid valve is activated through diagnostic commands, confirming individual valve opening and closure without restriction.

– Flow rate and pressure decay are monitored to identify internal leakage or sticking issues.

4. Pump Operation Test

– The pump is triggered and run through multiple cycles. Flow strength, noise levels, and sustained pressure are measured to verify optimal output.

– A pressure gauge on the outlet line confirms the system holds and regulates expected PSI under cycling.

5. Final Fault Scan + Leak Check

– After testing, the module is scanned again for any fault codes.

– All ports are checked for fluid leaks under pressure.
